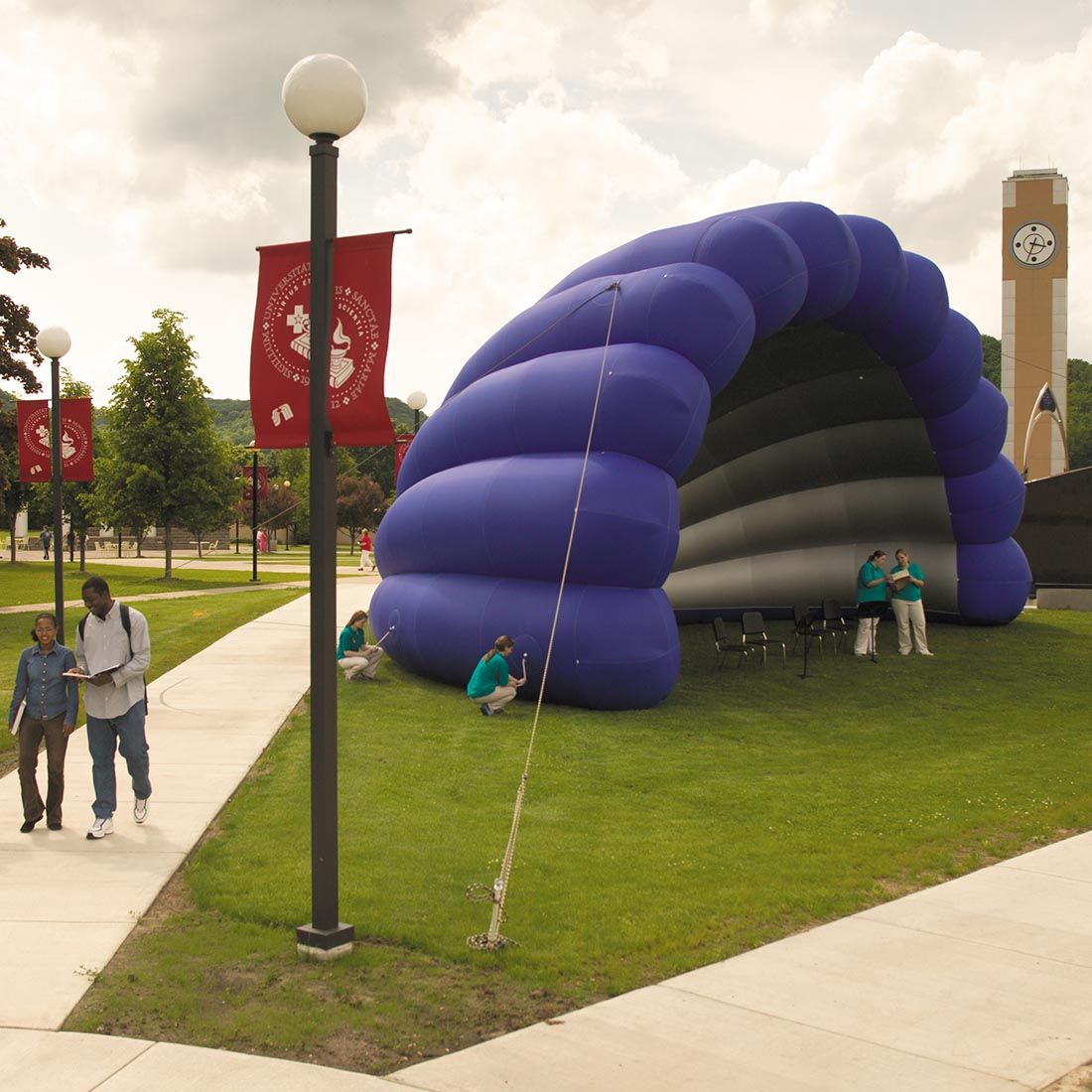

Inflatable Acoustic Shell

Construction

Construction

•  Meets or exceeds all international ISO standards
•  All air blower components comply with UL and CSA standards
•  Inflates in less than 10 minutes
•  Acoustically tested to improve sound projection – 1 to 3 dB increase in reflected sound energy
•  Air-release pockets unzip to speed deflation
•  The Inflatable Acoustic Shell is available in over 20 exterior color choices and 3 interior color choices to match any customer’s need at no additional charge
•  Convenient carrying bag that measures 5′ (1524 mm) in diameter holds shell and all tie-down straps
•  May be used with Stagemobile, STRATA Event Staging, StageTek Staging, Signature and Tourmaster and Choral Risers
•  Shipped weight includes all components
•  All dimensions are approximate when the shell is inflated because of the variability in setup
•  All models include a 1 HP, 3000 CFM, 115 volt, 3-speed air blower. Also available in 220 volt, 50 Hz
•  Shell is composed of vinyl-coated nylon that is weather-resistant and 100% fire-retardant
•  Extra-long ground anchors secure shell and withstand winds up to 20 mph (32 km/hr) when anchored in accordance with the Owner’s Manual

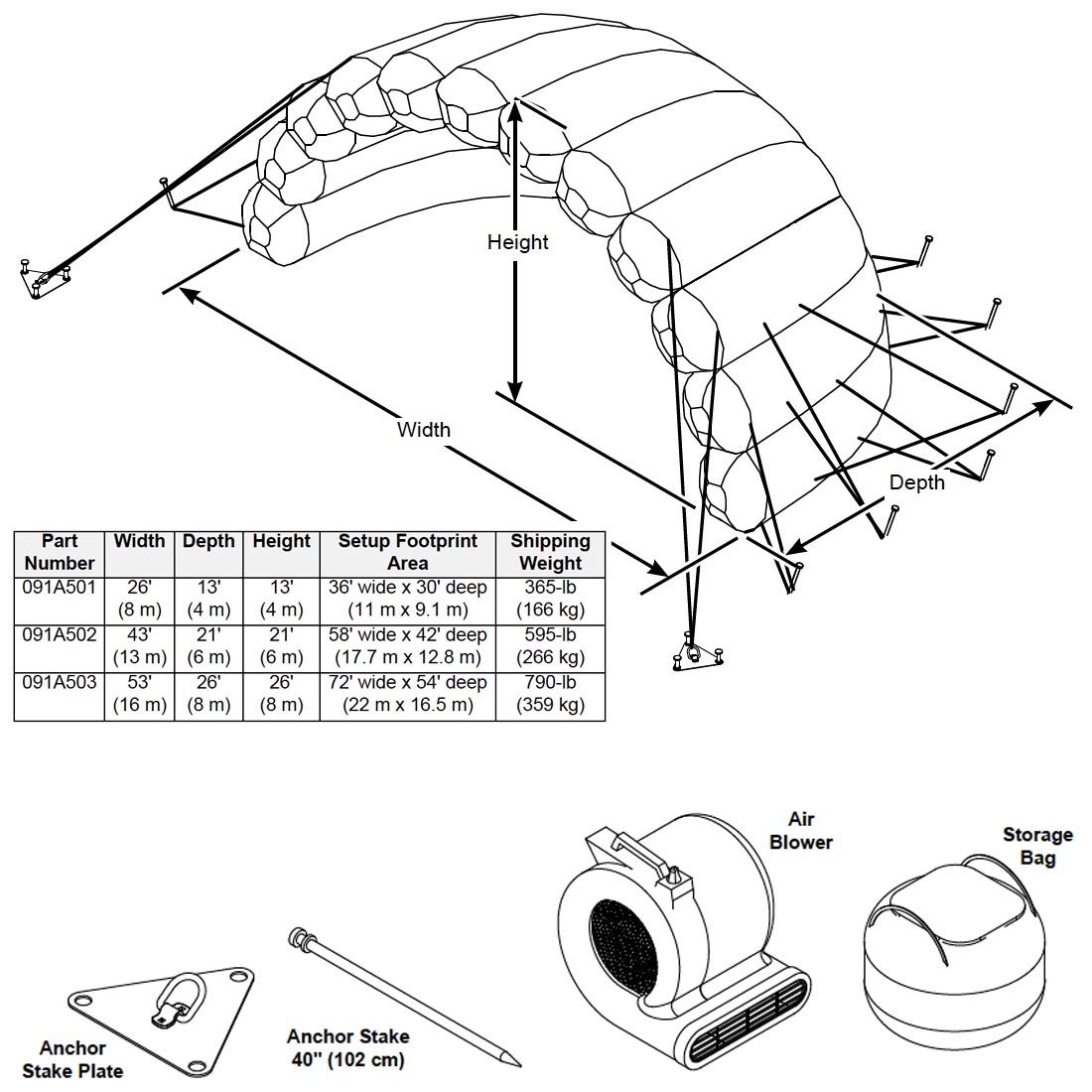

Available in three sizes
